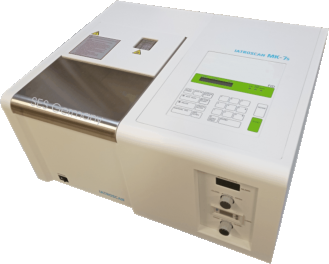

IATROSCAN MK-7s
The IATROSCAN MK-7s combines the techniques of thin layer
chromatography (TLC), an established technique for the separation
of organic compounds, with a flame ionization detector (FID).
A specially designed Chromarod (a quartz rod coated with a thin
layer of silica or alumina on which the sample is developed and
separated), is advanced at a constant speed through the flame of
the FID, the substances are ionized through energy obtained from
the hydrogen flame. Effected by the electric field applied to the poles
of the FID the ions generate electric current with an intensity
proportional to the amount of each organic substance entering the
flame.
The analysis with IATROSCAN MK-7s is favorable in maintenance
and price, because of the low consumption of solvents and the
reusable Chromarods
TLC-FID Analyser

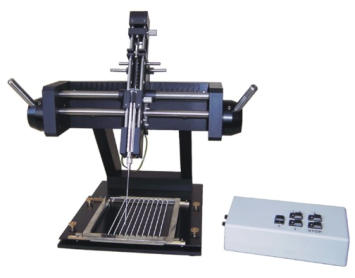

The SES Model 3202 Spotter for TLC/FID techniques is a
precision instrument specially developed for applying sample
solutions onto the sintered silica gel surface of a Chromarod.
The smaller and more concentrated the sample spot, the
better the resolution obtained after development of the
Chromarod in a TLC chamber (3201).
The reproducibility of quantitative and qualitative analyses
with the IATROSCAN is closely related to the accurate
application of a known quantity of sample onto the surface
of a Chromarod in the form of a micro spot.
With the "Autospotter" it is possible to apply between
0.020 and 10 micro liters of sample solution. The spotting
is electronically controlled through a small external
microprocessor module, with a precision of better than 0.5 %
Semi Automated Spotter
